Common LUT Format (CLF) Implementation Guide

Introduction

Look-up tables, or LUTs, are a common method for communicating color transformations. Many software and hardware providers develop LUT formats uniquely designed for use in their systems. Since these formats were designed to work in specific use cases, they often prove inadequate for interchangeability between applications or systems. To further complicate matters, some LUT formats use the same file extensions which make them appear to be compatible when they are not. If there are already a dozen or more confusing LUT formats, why should you as a developer consider adding support for yet another one?

While the myriad LUT formats already available are fundamentally useful in theory, each lacks one or more features that can be critical in meeting the demands of today’s sophisticated workflows. Existing formats can lack the quality, versatility, and metadata required to meet the demands of modern systems.

The Common LUT Format (CLF) provides flexibility to enclose transforms from simple to complex. Due to a lack of interchangeability of color transforms between tools, LUTs are frequently abused as a catch-all. Even simple color-space transformations, such as the application of a matrix or a logarithmic shaper function are often “baked” to crude LUT formats resulting in unfortunate losses in precision. As a solution, CLF allows for a range of common mathematical operators to be specified precisely, in addition to supporting traditional 1D- and 3D-LUTs in the file.

Because CLF files are floating-point capable, extremely flexible, and well documented, they are an excellent candidate for use in modern workflows. CLFs are also ideal for archival purposes because the format is well-specified and documented. There is also a high-quality, open source implementation freely available on GitHub.

Format Comparison Table

Features/Formats	CLF	3dl	Adobe (Iridas) cube	Resolve cube	Truelight cube	Cinespace cube	ASC CDL	Imageworks spi3d	ICC Profile
Provider	Academy / ASC	Discreet	Adobe	Blackmagic	Filmlight	Rising Sun	ASC	Imageworks	ICC
Maintained public documentation	✅	❌	✅	✅	✅	❌	✅	❌	✅
Implementation guide	✅	❌	❌	❌	❌	❌	✅	❌	✅
Allows shaper LUT	✅	❌	❌	✅	✅	✅	❌	❌	✅
Is not limited to log or video data on input	✅	❌	❌	✅	✅	✅	❌	❌	❌
Unconstrained ordering of processing elements	✅	❌	❌	❌	❌	❌	❌	❌	❌
Floating-point table values	✅	❌	✅	✅	✅	✅	✅	✅	✅
Rich metadata	✅	❌	❌	❌	❌	❌	❌	❌	✅
Test suite provided	✅	❌	❌	❌	❌	❌	✅	❌	✅
Text-based	✅	✅	✅	✅	✅	✅	✅	✅	❌
Can define operations in linear floating-point space	✅	❌	❌	❌	❌	❌	✅	❌	✅
GUID support	✅	❌	❌	❌	❌	❌	✅	❌	✅
Supports mathematical operators	✅	❌	❌	❌	❌	❌	❌	❌	❌

Target Audience

This document is primarily intended for application developers who want to add CLF support to their product. It defines requirements, tests, and provides recommendations that, if followed, will lead to robust support for CLF. Implementers who follow the guidance in this document can have confidence that their product is implementing the specification correctly.

The document may also be of interest to those using CLF to author transforms and who want to understand how the CLFs will be used by applications.

This guide should be read in conjunction with the CLF Specification (v 3.0).

Note

The specification was previously referred to by its document number - "S-2014-006". Although the spec had "2014" in the name, the document has been updated more recently than that. Version 3 of CLF was introduced with the release of ACES 1.2 in 2020 and the most recent editorial updates were in 2021. The current version of the specification now lives at the above link.

A Quick Introduction to CLF

Below is a basic example of a simple CLF file. Despite the word 'LUT' in the name of the format, these very simple examples do not contain any type of LUT whatsoever. Instead, the CLF is being used to communicate a set of ASC CDL adjustments (Example 1), and encapsulate a YCbCr to RGB conversion (Example 2).

There are a few key points that these examples demonstrate:

• CLF is an XML document and therefore conforms to the requirements of any XML document.
• There is one ProcessList, which can contain any number of ProcessNodes. (A ProcessNode is an operator such as a Matrix or LUT3D.)
• A CLF may or may not contain “LUTs” (despite the name).
• Some parts are optional and others are required.
• CLF provides a richer metadata model than other LUT formats - it’s not just numbers. Good metadata is highly encouraged and helps make the CLF file self-documenting.
• Every CLF must have a unique id attribute.
• The bit-depth attributes control formatting but not precision.

Color coding for the following two examples:
red is required
blue is optional
green are comments

Example 1:

ASC CDL Implementation

<?xml version="1.0" encoding="UTF-8"?>
<!-- Required: XML Version and Encoding declaration -->

<!-- Required: ProcessList element with ‘id’ and ‘compCLFversion’ -->
<!-- name and xmlns are optional -->
<ProcessList
  compCLFversion="3.0"
  id="b4cca59a-9428-49c0-8e91-868718c4e526"
  name="FwdNoClamp style"
  xmlns="urn:AMPAS:CLF:v3.0">

  <Description>CDL with FwdNoClamp style</Description>

  <ASC_CDL
    id="clf/ctf no-clamp fwd"
    inBitDepth="10i"
    outBitDepth="8i"
    style="FwdNoClamp">

    <SOPNode>
      <Slope>  1.000000  1.000000  0.800000</Slope>
      <Offset>-0.020000  0.000000  0.150000</Offset>
      <Power>  1.050000  1.150000  1.400000</Power>
    </SOPNode>

    <SatNode>
      <Saturation>0.750000</Saturation>
    </SatNode>
  </ASC_CDL>
</ProcessList>

Example 2:

BT.709 YCbCr (SMPTE/legal range) to RGB (full range)

<?xml version="1.0" encoding="UTF-8"?>
<!-- Line above is required: XML Version and Encoding declaration -->

<!-- Required: ProcessList element with ‘id’ and ‘compCLFversion’ -->
<ProcessList
  id="0befc138-3757-45f0-a080-83bebb77baf2"
  compCLFversion="3.0">

  <!-- Optional: ProcessList Description -->
  <Description>BT.709 YCbCr (legal) to RGB (full)</Description>

  <!-- Optional: InputDescriptor / OutputDescriptor -->
  <InputDescriptor>YCbCr</InputDescriptor>
  <OutputDescriptor>RGB</OutputDescriptor>

  <!-- Required: One or more ProcessNode elements -->
  <!-- inBitDepth and OutBitDepth are required, id is optional -->
  <!-- If in/outBitDepth values are different, the scale factor
    between them must also be applied to the matrix coefficients! -->
  <Matrix
    id="815ebbac-550a-453b-a1e6-bf93779fc9c8"
    inBitDepth="32f"
    outBitDepth="32f">

    <!-- Optional: ProcessNode description -->
    <Description>Input offsets for legal range luma and color
      difference channels</Description>

    <!-- White space formatting is recommended, but optional -->
    <!-- Array element is required for a Matrix ProcessNode -->
    <Array dim="3 4">
      <!-- when dim=”3 4”, the 4th column is offset terms -->
      1.0 0.0 0.0 -0.0625
      0.0 1.0 0.0 -0.5
      0.0 0.0 1.0 -0.5
    </Array>
  </Matrix>

  <!-- Additional ProcessNodes are applied in order -->
  <Matrix
    id="deceda6e-8fee-471a-8599-fa513c17f3cf"
    inBitDepth="32f"
    outBitDepth="32f">
    <Description>BT.709 YCbCr to RGB matrix</Description>
    <Array dim="3 3">
      1.16893193493151  0.000000000000000  1.799743966238840
      1.16893193493151 -0.214081616673236 -0.534991005624129
      1.16893193493151  2.120653355189730 -0.000000000000000
    </Array>
  </Matrix>
</ProcessList>

Open Source Example Implemention

As you explore CLF and work to implement it into your product(s), it may be helpful to refer to some existing tools that already provide full CLF functionality. The tools described here are included in the open source project OpenColorIO (OCIO) v2. More details and the full installation process for OCIO can be found at https://www.opencolorio.org.

ociochecklut

The command-line utility ociochecklut can be used to load a CLF file and process an RGB triplet through the CLF file. It will report any errors that are encountered in parsing the file. If no RGB triplet is provided to process through the CLF file, then a list of the ProcessNodes contained in the LUT are returned. This tool is installed as part of OCIO v2.

Here is sample output using the CLF in the example section (assuming it is saved as a file called 709_ycbcr-to-rgb.clf):

Summarizing the contents of the CLF:

$ ociochecklut 709_ycbcr-to-rgb.clf
Transform operators:
    <MatrixTransform direction=forward, fileindepth=32f, fileoutdepth=32f, matrix=1 0 0 0 0 1 0 0 0 0 1 0 0 0 0 1, offset=-0.0625 -0.5 -0.5 0>
    <MatrixTransform direction=forward, fileindepth=32f, fileoutdepth=32f, matrix=1.16893193493151 0 1.79974396623884 0 1.16893193493151 -0.214081616673236 -0.534991005624129 0 1.16893193493151 2.12065335518973 -0 0 0 0 0 1, offset=0 0 0 0>

Evaluating the RGB value [0.5, 0.4, 0.3]:

$ ociochecklut 709_ycbcr-to-rgb.clf 0.5 0.4 0.3
0.1514589 0.6398141 0.2993424

ocioconvert

The command-line utility ocioconvert can be used to apply a CLF file to an image. To apply a CLF file, use the --lut option. A variety of image file formats are supported. This tool is installed as a part of OCIO v2, although it first requires installation of OpenImageIO.

Processing the input image syntheticChart.01.exr to the output image output_image.exr through the CLF from the previous example:

$ ocioconvert --lut 709_ycbcr-to-rgb.clf syntheticChart.01.exr output_image.exr

ociomakeclf

The command-line utility ociomakeclf will convert any LUT format supported by OpenColorIO into CLF format. The --csc option may be used to create an ACES Look Transform that is compatible with the ACES Metadata File (AMF). This tool is installed as a part of OCIO v2.

Convert the LUT oldLUT.3dl to CLF format:

$ ociomakeclf oldLUT.3dl oldLUT.clf

Convert the look LUT acescctLUT.3dl that expects and produces ACEScct values to an ACES Look Transform in CLF format that expects and produces ACES2065-1 values:

$ ociomakeclf acescctLUT.3dl LMT.clf --csc ACEScct

Minimum Requirements

Introduction

The products anticipated to implement CLF can be categorized into two broad categories: one for final production-level finished images and one for preview/proxy images. Due to the fundamental differences in the products, different requirements are provided for the two categories.

Finishing Tier

The primary category of products, dubbed the Finishing Tier, includes software implementations that have the logic and processing power available to parse and apply ProcessNode operations using floating-point calculations and in sequential order. Finishing Tier products provide the highest quality image processing and have the tightest tolerances, prioritizing accuracy in computation results. Finishing Tier products should be used to create images when the highest image fidelity is required in pipelines utilizing CLF files.

Minimum Requirements

Products in the Finishing Tier category shall:

1. Pass all the Read Tests
2. Pass the Finishing Tier Apply Tests

In addition to the minimum requirements, Finishing Tier products should review the "Writing CLFs" section and conform their CLF implementation to those recommendations wherever possible.

Preview Tier

The second category of implementations are described as Preview Tier devices. These are products that, due to limited processing power or technical constraints, cannot implement a CLF ProcessList exactly and instead require that CLF files be ”baked” or collapsed into a simpler representation (for example, a single 3D-LUT). Hardware devices such as on-set LUT boxes would be an example of devices that might fall into this category.

As the name implies, Preview Tier products are suitable for creating images such as for on-set viewing, where the requirements for accuracy and/or flexibility are lower than for the Finishing Tier.

CLF is designed as a modern LUT format that can handle floating-point input and output pixels. However, the current ecosystem of devices still includes many products that work primarily on integer-encoded signals (e.g. HD-SDI and HDMI video) and do not support floating-point image data, including scene-linear encodings such as ACES2065-1. These types of devices would fall in the Preview Tier and CLF may be used to encapsulate any of the LUTs that are currently used in such devices. But there is no expectation that these devices will be able to accurately process other CLFs that contain transforms expecting scene-linear inputs or outputs.

Note that although the processing requirements are lower for the Preview Tier, the read requirements are not. In other words, even Preview Tier devices must be able to read all of the files in the test suite. But as described in the section "Applying CLFs", if a Preview Tier device detects ProcessNodes that it does not support, there are two options:

1. Inform the user of this situation and do not attempt to process the file.
2. Attempt to bake the CLF down into a representation supported by the device. The user should be given some indication that they are seeing an approximation of the original CLF.

Minimum Requirements

Products in the Preview Tier category shall:

1. Pass all the Read Tests
2. Pass the Preview Tier Apply test

Reading CLFs

This section describes the general requirements for parsing CLF files, the provided test suite, and the steps for validating an implementation using the test suite.

General Parsing Requirements

Requirements:

1. Version Support

   Implementations are expected to support v3 of the CLF Specification. Backwards compatibility for versions prior to v3 is optional.

2. Error Handling

   An implementation must check that a file is valid, and if not, issue an error or warning to the user hinting at what the problem is. The tool ociochecklut (described above) provides good examples of the types of errors that could be issued when illegal syntax is detected.

3. Metadata reading

   An implementation must (at a minimum) be able to display to the user the contents of these key metadata fields:

   1. Top-level ProcessList Description elements
   2. InputDescriptor, OutputDescriptor

4. Precision and formatting of numeric values

   Implementations must be able to read at least 32-bit float precision, though 64-bit precision is desirable for ProcessNodes other than LUT1D and LUT3D. Note that the CLF specification defines the numeric values as “xs:float” type, that is, XML Schema floats. Parsers should be able to handle all of the details of this format (e.g., integers without a decimal point, missing leading 0 on decimal values, the presence of a leading “+”, etc.). Note that an integer is a legal xs:float.

Recommendations

XML is designed to be extensible, and XML files often contain data that was not defined in the specification. However, the desire for extensibility must be balanced against the need to detect erroneous content. On occasion, unrecognized XML elements may be detected. In those instances, the following logic is recommended:

• If the unrecognized element is at the ProcessNode level (in other words, the top level of the ProcessList), it should produce an error, or at least a warning.
• If the unrecognized element is within a ProcessNode, a warning should be issued.
• If the unrecognized element is within the Info block, it may be ignored.

CLF File Test Suite

A number of test files are provided for implementers to test their system and demonstrate that their implementation can robustly handle all features of CLF v3. The tests provided in the OpenColorIO repository on Github include both legal and illegal test files. The file name and description in each file identifies what the file is testing.

The test files confirm that each ProcessNode is functioning per the CLF specification. For ProcessNodes that allow for different styles or parameters, either separate test files or single test files with multiple ProcessNode variations are provided to check that all styles and parameters are functional. Standard files are expected to be processed without error.

A number of "illegal" test files with various syntax errors are also provided to test the error handling capability of implementations. Illegal files should not be processed and the system should generate an appropriate error message.

Test Procedure

Download the OpenColorIO repository from GitHub at the URL: https://github.com/AcademySoftwareFoundation/OpenColorIO

If you are not familiar with Git, that’s fine. Simply click on the green button that says Code and select “Download ZIP”. Unzip this file on your computer and you will have all of the test files.

The test files are in the directory: OpenColorIO/tests/data/files/clf

You may refer to a description of each test file in Annex B.

For each legal test file:

1. Read the file into your product and verify that it loads successfully.

For each illegal test file (these are the files in the clf/illegal subdirectory):

1. Read the file into your product and ensure that the user is notified that it is not a legal CLF file. Ideally, the nature of the problem should be communicated to the user.
2. Verify that none of these files load successfully. They should not result in a processed image. If an implementation needs to pass through the unprocessed image, it should communicate clearly to the user in some other way that there was an error.

Applying CLFs

General

For CLF to be useful, it is important that different products output the same results when applying the same CLF to the same input. This section describes the different expectations for Finishing Tier and Preview Tier products. Each category has their own metric and defined tolerances.

Finishing Tier

Tolerances

The Finishing Tier is intended to cover software-based implementations such as products for tasks including color correction and compositing. It is expected that these implementations will use floating-point math to apply the contents of the CLF, without converting it into a significantly different representation. Hence fairly tight tolerances may be expected.

A CLF may be used to apply arbitrary color space conversions and so the input and output images may be in arbitrary color spaces, including video, logarithmic, and scene-linear color encodings. Both integer and wide-range floating-point pixel values are expected. Video and logarithmic encodings are typically sufficiently perceptually uniform that a simple absolute error metric such as (actual – aim) may be used. However, scene-linear encodings require a tolerance that is tighter for dark colors and looser for bright colors - in other words, a relative rather than absolute metric. This is due to the approximately logarithmic nature of human color perception (although the metric is actually computed per channel).

When comparing an aim and actual value, a basic relative error metric has the form:

(actual – aim) / aim

However this can become overly sensitive when the values being compared become very small. In the limit, when the aim value is zero, the result is either infinity or NaN. Therefore it is useful to use a “safe-guarded relative error metric” that places a lower bound on the denominator:
actual – aim) / max(aim, lower_bound).

This effectively transitions the error metric from being a relative error metric for bright and normal colors to an absolute error metric when approaching a certain noise floor determined by the lower_bound constant. A reasonable lower_bound constant for images in ACES2065-1 color space would be 0.1. It is also necessary to handle the case where the aim value may be negative, in which case the final error metric becomes:

abs(actual – aim) / max(abs(aim), 0.1) <= 0.002

This is essentially a relative tolerance of +/– one part in 500 above 0.1 and an absolute tolerance of +/– 0.0002 below 0.1.

It is expected that implementations in the Finishing Tier will be using floating-point software calculations and the processing will be applied this way regardless of whether the color encodings involved are video, logarithmic, or scene-linear. Since relative tolerances are well-suited to verifying floating-point math, the safe-guarded relative error metric will be used for all Finishing Tier tolerances even though this may be perceptually either too tight or too loose when processing video or logarithmic pixel values.

Above the lower bound transition, the tolerance for implementations in the Finishing Tier is a relative error of plus or minus one part in 500. For comparison, half-float numbers are spaced at a relative distance of one part in 1024. (In the literature on the subject of floating-point math, this distance is called a “unit of least precision,” or ULP.) So the tolerance for the metric is only slightly more loose than the precision imposed by the storage of images as half-float OpenEXR files.

To validate the tolerance, testing was conducted using various processing modes in OpenColorIO. For example, various forms of CPU optimization were applied and the results were compared to the unoptimized reference version. These included optimizations such as concatenating adjacent matrices and approximating standard library logarithm and power functions with faster but less precise versions. Likewise, processing on the GPU was compared to the CPU reference version. The test image that was used is the one described in Annex A, so it sampled the full range of half-float numbers. The fact that all of these processing variations passed the specified error tolerance indicates that it should be an achievable performance level for a wide range of products.

Test Procedure

The collection of test CLF files are included in the OpenColorIO repository, as described in Annex B. Process the source image (whose contents are described in Annex A) through your implementation for each of the CLFs described in Annex C.

The processed reference frames to be used for comparison may be downloaded as described in Annex C, or you may generate them yourself using the steps described in Annex K

The command-line application oiiotool, which is installed as a component of OpenImageIO, can be used to compare pixels between two images and evaluate the metric specified in this section. A Python script for doing this is provided with OpenColorIO. Here are the steps for how to install and run it:

1. Install OpenImageIO.

2. Download the OpenColorIO source code from the URL: https://github.com/AcademySoftwareFoundation/OpenColorIO

3. Unzip the downloaded source code package.

4. In a shell, cd to the directory where the OpenColorIO source code was unzipped, and then cd into the sub-directory share/clf. This directory contains the Python script.

5. In the shell, type:

   $ python compare_clf_test_frames.py <PATH-TO-REFERENCE-IMAGES> <PATH-TO-ACTUAL-IMAGES>

   replacing the two items in brackets with the path to the downloaded reference images and the path to your implementation's actual images.

The script iterates over the images in the directory and prints the oiiotool command being run. It will then print either 'Test passed' or 'Test failed' after each command and then at the end will summarize with 'All tests passed' or 'These tests failed' with a list of the failed images.

Alternate Test Procedure

Implementers may also choose to use other tools or implement their own tools to compare pixel values and calculate the metrics. In that case, proceed as follows to compare your actual images to the aim reference images described in Annex C:

For each CLF identified in the Finishing Tier test list in Annex C:

1. Use your implementation to process the test frame through each legal CLF file.
2. Calculate the error metric: abs(actual – aim) / max(abs(aim), 0.1)
3. Verify that:
   1. max error <= 0.002
   2. no Infinity or NaN values are created

Preview Tier

LUT Baking

Preview Tier devices/implementations typically are not able to handle the full flexibility of the CLF processing model. If the contents of the CLF correspond to what the device may natively apply, then it is reasonable to expect fairly tight processing tolerances. However, if the CLF contains many ops that must be converted (or "baked") into some other representation in order to be applied in device hardware, then it may be unreasonable to demand the same level of performance.

Different tolerances would need to be established for each CLF in the test suite depending on the contents and complexity of each CLF and on the details of how it is baked. Therefore, the current version of this guide only tests the ability to process a single LUT3D (e.g. a baked result, not the baking process itself).

So all Preview Tier devices must at least handle the LUT3D apply test but implementers will need to decide how to handle CLFs that are more complicated. One approach is to simply inform the user that the CLF contains operators that cannot be processed by that implementation. Another approach is to attempt to bake the CLF into a form that the implementation is able to process. Annex E provides an introduction to the topic of baking.

Implementations should notify users if their CLF is being baked into a significantly different structure in order to be processed by the device. (Simple adjustments such as concatenating adjacent matrices into a single matrix do not fall into this category, but combining multiple operators into a single LUT3D certainly does.)

Implementers are strongly advised to document the CLF structures that they are able to apply exactly, without need of baking. This would allow users to plan their processing accordingly in order to make best use of the device. Advanced users will be able to generate CLFs in order to obtain the best accuracy possible, given the restrictions.

Tolerances

The Preview Tier is intended to cover devices such as on set LUT boxes that work on live SDI video signals. These devices are intended to process video or logarithmic encodings and typically do not handle floating-point pixel values. Therefore, a simple absolute error metric may be used. Integer values should be normalized to [0,1] by dividing by the maximum integer value (e.g., 1023, 4095, 65535), yielding an absolute error metric applied to normalized values:

\[ {\text{abs}(actual – aim) <= 0.002} \]

This is essentially a tolerance of +/– two 10-bit code values, if applied to a 10-bit signal, or equivalently +/– eight 12-bit code values, if applied to a 12-bit signal, etc.

Test Procedure

The process of verification for the Preview Tier is to check for correct implementation of a LUT3D with tetrahedral interpolation using an integer test image.

For the CLF identified in the Preview Tier test list in Annex D:

1. Use your implementation to process the Preview Tier DPX source image (see Annex D) and produce an integer DPX result.

2. Compare your result to the DPX reference frame provided (see Annex D), and calculate the error metric described in the preceding paragraphs:

   1. If using OpenImageIO, the command would be:

      $ oiiotool <aim-image> <actual-image> --absdiff --rangecheck 0,0,0 .002,.002,.002 -o /tmp/tmp.dpx


3. This command will print something like this:

   0 < 0,0,0
   0 > .002,.002,.002
   1048576 within range


   If the second line of the result indicates that there are 0 pixels greater than 0.002, then the test passed.

   (Note that oiiotool works in normalized units, so 0.002 is actually equivalent to 0.002 x 1023 = 2.046 10-bit code values.)

Writing CLFs

Not all products must support writing CLFs, depending on the way they are used. If your product supports the writing of CLF files, it must adhere to the CLF specification. Some important highlights and recommendations for implementation default behavior, or for users authoring CLFs by hand, are described in the following sections.

File Extension

The extension used for CLF files should be a .clf at the end of the file name.

Indentation

CLF files may be opened and read by users during troubleshooting, so readability is desirable. In particular, the following formatting is recommended for indentation:

1. Use 2-4 spaces to indent relative to a parent item.
2. A new indented line should be used after the starting element tag for complex XML types. For compactness, simple XML types may be placed on a single line.
3. Arrays (contained in Matrix, LUT1D, LUT3D) should use line breaks to present data visually (e.g., by aligning columns of R, G, B). Large blocks of lines of numbers do not need to be indented since they are already visually distinct and there is no point adding spaces in front of thousands of lines (e.g., in the case of large LUTs).
4. Long text strings (e.g. in a Description tag) should not contain embedded wrapping and indentation. It is better to let the application software determine where to wrap long lines of text in order to present them best in its own user interface.

Indentation example (using made-up element names):

<aTag>
   <simpleType>This does not require a line break.</simpleType>
   <complexType>
      <simpleType>This is a simpleType in a complexType.</simpleType>
      <simpleType>Here's a long text line that shouldn't be wrapped in the CLF since the app will decide where to wrap it.</simpleType>
   </complexType>
   <simpleTypeWithParam param=0.5 />
   <Array dim="3 4">
1.0  0.0  0.0  -0.3
0.0  1.0  0.0  -0.5
0.0  0.0  1.0  -0.5
   </Array>
</aTag>

Use of XML Comments

CLF authors should avoid using XML comments to encapsulate metadata or important information. Most parsers ignore comments, so if a CLF gets read and rewritten, comments that were previously there may go missing. Any important information should be enclosed in provided metadata XML elements and attributes (e.g., the ProcessList's Info element).

Discrete Operations

Finishing Tier products should, whenever possible, encapsulate discrete math operations with one or more ProcessNodes in a ProcessList rather than simply exporting a 1D- and/or 3D-LUT. For example, a common color space conversion should use discrete Log and Matrix nodes, where appropriate, rather than a single LUT3D.

Precision and Range of Numeric Values

Ensure your implementation writes a sufficient number of digits. Even though image processing will typically be done at 32-bit floating-point precision, intermediate calculations (for example, combining matrices) may be done at higher precision.

Also, take note that the bit-depth attributes do not impose range or quantization limits. Hence you should not impose these limits unnecessarily. For example, for a LUT1D with an outBitDepth of 10i, the normal range would be expected to be 0 to 1023. However, it is legal to exceed this range and also to use fractional values. Thus, values such as [-10.5, 0.01, 1055.2] could be legal values. Please refer to the Implementation Notes on Bit Depth section of the CLF specification for more detail.

The id Attribute

Every CLF is required to have an id attribute at the ProcessList level. The specification does not impose any restrictions on the formatting of this attribute. However, it should be noted that an ACES Metadata File that references a CLF file prefers that the id attribute contains a UUID object according to RFC 4122. Therefore, it is recommended that implementations use a UUID to fill the id attribute when writing new CLF files. Note that the id attribute is optional at the ProcessNode level.

Storage of Proprietary Metadata

If an application wants to store "dark metadata" that is meaningful only for a special purpose within proprietary products or workflows, this is easily accomplished. Indeed this is one of the frequently cited benefits of the XML encoding. However, it is important that CLF writers are respectful of certain guidelines to ensure the CLF file remains usable by other readers. If you need to add proprietary metadata, please respect the following:

1. Check the CLF spec to see if there is already an element whose purpose matches what you are trying to store.
2. If not, you may create a custom XML element to store your metadata. As described in the spec, this should typically be placed within the Info block. You may add additional custom elements and attributes under your main element as needed in order to easily represent your information.
3. Avoid using the standard existing elements such as Description in a way that is inconsistent with their purpose.
4. Avoid placing custom elements at the ProcessNode level since that would make it an illegal file that most parsers will reject.

Other Metadata Considerations

Inaccurate metadata is worse than no metadata. Implementers should make it as regular and easy as possible for the user to set required CLF metadata when writing a file. Accurate metadata is critical for other users to be able to understand the intended usage of the CLF file, especially the Description, InputDescriptor, and OutputDescriptor tags. If known by the application, the application should fill in the InputDescriptor and OutputDescriptor tags automatically. At this time, no standard list of values (i.e., text strings) for color spaces or other common settings is defined.

When writing a CLF to represent an ACES Look Transform, the CLF should adhere to the structure and metadata described in Annex F.

If translating an ACES CTL (Color Transformation Language) file into CLF, set the ACESTransformID and ACESUserName (under the Info block of metadata) using the corresponding strings from the CTL header. [Examples 13] and [14] in [section 6] of the specification show CLFs using this feature.

Helpful Hints for a Successful Implementation

Matrix Order

Take note that the order of coefficients in the Matrix ProcessNode follows the usual convention in color science but that this is the transposition of both the order sometimes used in computer graphics and the order used in CTL. The Matrix section of the CLF Specification clearly documents the ordering of matrix coefficients that must be used. Also, note that the 3x4 matrix includes an offset value after each of the three matrix values.

LUT3D Serialization Order

As described in the LUT3D section of the CLF Specification, take note that the LUT3D ProcessNode serializes the LUT entries in blue-fastest order. This is a commonly used ordering (for example it is used by the common .3dl format) but some other formats use red-fastest ordering (e.g., .cube format).

Gamma Polarity

As described in the Exponent section of the CLF Specification, take note that the Exponent ProcessNode uses the specified parameter directly in the power function for the forward direction. This is the same usage as in an ASC CDL power. But take care since often "gamma" operators in color processing software apply the inverse of the power for the forward direction.

Bit-Depth Attributes Don't Affect Processing Precision

As called out in the CLF specification, the inBitDepth and outBitDepth attributes of ProcessNodes are not intended to control the processing precision, which should normally be 32-bit floating-point. Rather, these attributes simply determine the scaling of various parameter values such as matrix and LUT entries. Please refer to the Bit Depth section of the CLF Specification for the details.

Conversion Between Bit-Depths

When interpreting the inBitDepth and outBitDepth attributes, conversions happen using "power of two minus 1" scaling rather than "power of 2" scaling. Please refer to the section on conversion between bit depths in the CLF Specification for the details.

Appendices

Annex A: Test Image

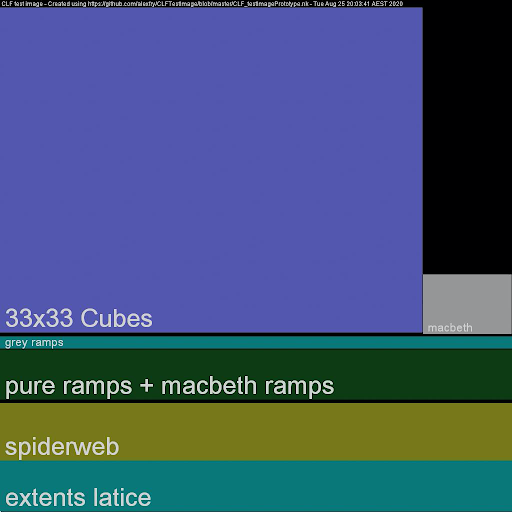

A 16-bit OpenEXR test image was designed with many ramps and other values which should be useful for testing any CLF and/or CLF implementation. The image includes:

• 33x33 cube spanning -1.0 to 1.0
• 33x33 cube spanning -65504 to 65504
• an ACES2065-1 ColorChecker chart
• 0-1 grayscale ramps
• ColorChecker values and primaries/secondaries ramped in ½ stop increments
• a set of ramps designed to generate a spiderweb when viewed on a vectorscope
• extents lattice ramps designed to produce a bounding box around all possible normal positive and negative values when viewed in 3D

Specific details for each of the image subsections can be found in the README at https://github.com/alexfry/CLFTestImage

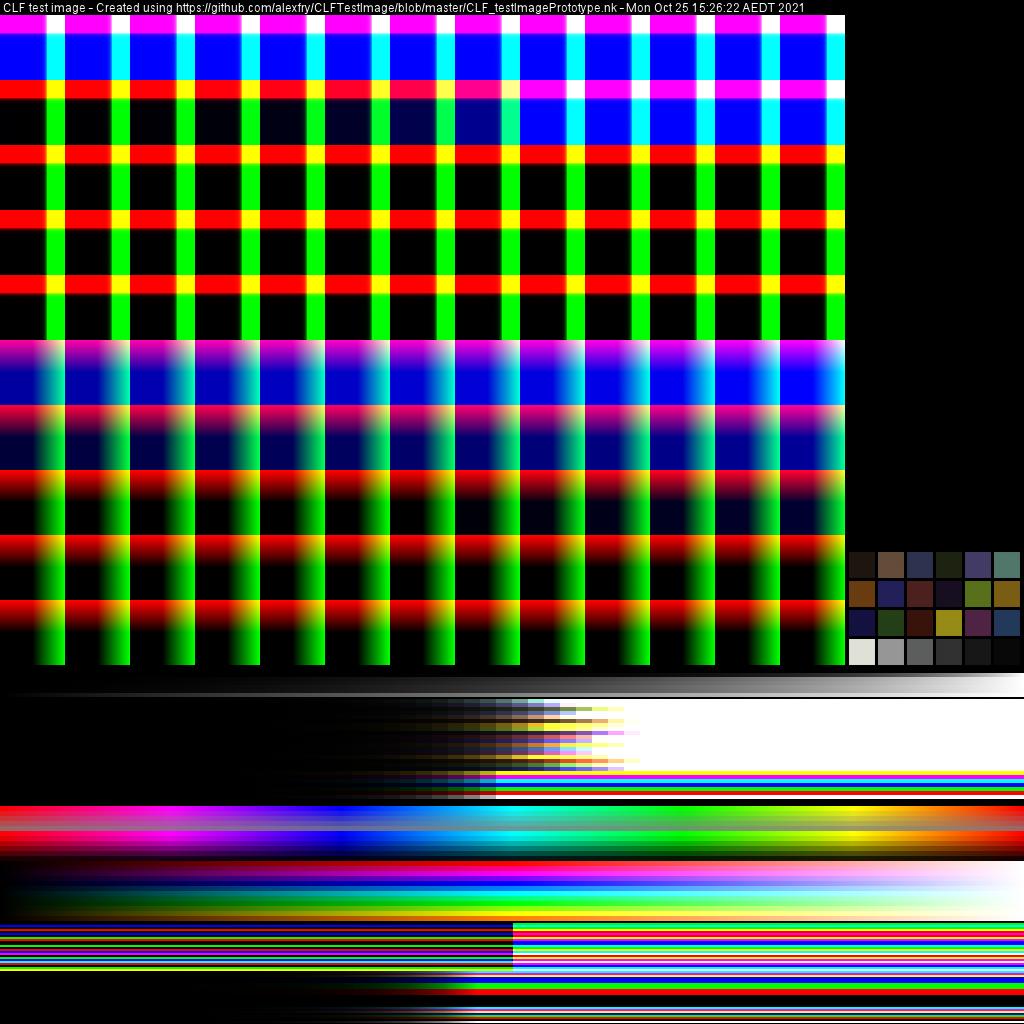

The test image (named CLF_Finishing_SourceImage_v008.exr) is included along with the processed reference images in the download referenced in Annex C and D.

Annex B: CLF Test Suite Listing

These test files may be found in the OpenColorIO repository on GitHub: https://github.com/AcademySoftwareFoundation/OpenColorIO

The files are in the sub-directory: OpenColorIO/tests/data/files/clf

Note: Some of the test files intentionally use unusual or difficult syntax to give a thorough test for parsers. They are not all intended as "best practice" examples.

Legal test files

An implementation should be able to load and process these files successfully.

Index	Filename	Ops tested	Description	Notes
0010	aces_to_video_with_look.clf	Matrix, Log, CDL, Lut3D	ACES2065-1 to ACEScct, CDL, then ACES Output Transform	Interpolation=tetrahedral
0020	cdl_all_styles.clf	CDL	One ASC CDL of each style
0030	cdl_clamp_fwd.clf	CDL	Basic single CDL	Has newlines in Slope element
0040	cdl_missing_sat.clf	CDL	Basic single CDL without SatNode
0050	cdl_missing_sop.clf	CDL	Basic single CDL without SOPNode
0060	cdl_missing_style.clf	CDL	Basic single CDL, relying on default style
0070	difficult_syntax.clf	Matrix, Lut1D	Legal file with lots of unusual formatting to stress parsers
0080	exponent_all_styles.clf	Exponent, Range	One Exponent of each style
0090	info_example.clf	Matrix	Info metadata element with app-specific elements
0100	inverseOf_id_test.clf	Lut1D	Example of inverseOf ProcessList attribute
0110	log_all_styles.clf	Log, Range	At least one Log op of each style and LogParams usage
0120	lut1d_32f_example.clf	Lut1D	Basic 65x1 32f/32f Lut1D	Array is monotonic decreasing
0130	lut1d_comp.clf	Lut1D	Two Lut1D ops, 2x1 8i/8i and 32x3 8i/32f	Channels of the 32x3 are unequal
0140	lut1d_example.clf	Lut1D	Basic 65x1 8i/12i Lut1D	Array values exceed nominal 12i range and must not be clamped
0150	lut1d_half_domain_raw_half_set.clf	Lut1D	Lut1D 65536x1 16f/16f using halfDomain and rawHalfs
0160	lut1d_long.clf	Lut1D	Lut1D 131072x1 32f/16f	Array contains occasional duplicate/quantized values
0170	lut3d_17x17x17_10i_12i.clf	Lut3D	Typical Lut3D 17x17x17 10i/12i	No interpolation set (should use trilinear)
0180	lut3d_bizarre.clf	Lut3D	Unusual 3x3x3 10i/10i Lut3D, interpolation=tetrahedral	Array values exceed nominal 10i range and must not be clamped
0190	lut3d_identity_12i_16f.clf	Lut3D	Basic identity 2x2x2 12i/16f Lut3D	Interpolation=tetrahedral
0200	lut3d_preview_tier_test.clf	Lut3D	Typical Lut3D 33x33x33 32f/10i, tetrahedral	This is the file used for the Preview-tier processing test. Values clamped to [4,1019].
0210	matrix_3x4_example.clf	Matrix	Matrix 3x4 10i/12i, includes "+" and "e-1" in Array	The 10i/12i depths requires normalizing the Array values by 1023/4095
0220	matrix_example_utf8.clf	Matrix	Matrix 3x3 32f/32f	Matrix Description uses non-ASCII characters
0230	matrix_example.clf	Matrix	Matrix 3x3 32f/32f	Uses the legal dim="3 3 3" syntax allowed for CLF v2 compatibility
0240	matrix_no_newlines.clf	Matrix	Matrix 3x4 10i/10i, compact formatting with no newlines
0250	matrix_windows.clf	Matrix	Identity Matrix 3x3 16f/12i, Windows line-endings	Per section 3.2.6 of the spec, Linux newlines should be used. But for maximum robustness, ideally other line-endings should be tolerated
0260	multiple_ops.clf	All ops	Tests at least one of all ops
0270	range_test1_clamp.clf	Range	Range 8i/32f with Clamp style	The 8i minIn/maxIn values require normalizing by 1/255
0280	range_test1_noclamp.clf	Range	Range 8i/32f with noClamp style
0290	range_test2.clf	Range	Range 32f/16f, minValue only, with Clamp style
0300	range.clf	Range	Range 16i/16i, relying on default style (Clamp)	The 16i values require normalizing by 1/65535
0310	tabulation_support.clf	Lut3D	Lut3D 3x3x3 10i/10i, interpolation=tetrahedral	The Array RGB values are only separated by tabs
0320	xyz_to_rgb.clf	Matrix, Range, Lut1D	Matrix 3x3 32f/32f, Range, and Lut1D 128x3 32f/32f	The Lut1D Array columns are unequal

Illegal test files

These files should not load successfully and the implementation should indicate that it is not a legal file. The files are in the directory: OpenColorIO/tests/data/files/clf/illegal

Index	Filename	Ops tested	Description	Notes
0010	array_bad_dimension.clf	Matrix	Array dim attribute has 10 numbers
0020	array_bad_value.clf	Matrix	Array has "P" for the 4th value rather than a number
0030	array_missing_values.clf	Matrix	Array has 3 values instead of 9
0040	array_too_many_values.clf	Matrix	Array has 18 values instead of 9
0050	cdl_bad_power.clf	CDL	One of the power values is 0
0060	cdl_bad_sat.clf	CDL	Saturation has 2 values instead of 1
0070	cdl_bad_slope.clf	CDL	Slope has 2 values rather than 3
0080	cdl_bad_style.clf	CDL	Style is "invalid_cdl_style"
0090	cdl_missing_offset.clf	CDL	The SOPNode is missing the Offset element
0100	cdl_missing_power.clf	CDL	The SOPNode is missing the Power element
0110	cdl_missing_slope.clf	CDL	The SOPNode is missing the Slope element
0120	exponent_bad_param.clf	Exponent	The basicFwd style may not use the offset attribute
0130	exponent_bad_value.clf	Exponent	The monCurveFwd style requires exponent to be >= 1
0140	image_png.clf	None	File is a binary PNG image, not actually a CLF file
0150	indexMap_test2.clf	Lut3D	The IndexMap element is no longer allowed in CLF v3
0160	log_bad_param.clf	Log	The linToLog style may not contain the linSideBreak parameter
0170	log_bad_style.clf	Log	Style is "invalidStyle"
0180	log_bad_version.clf	Log	The compCLFversion = 2.0, Log was introduced in v3
0190	log_missing_breakpnt.clf	Log	The cameraLogToLin style must have the linSideBreak parameter
0200	lut1d_half_domain_missing_values.clf	Lut1D	A half-domain LUT must have 65536 values
0210	lut1d_half_domain_set_false.clf	Lut1D	The halfDomain attribute may only have the value "true"
0220	lut1d_raw_half_set_false.clf	Lut1D	The rawHalfs attribute may only have the value "true"
0230	lut3d_unequal_size.clf	Lut3D	The Array dimension is 2x2x3x3
0240	matrix_end_missing.clf	Matrix	There is no element
0250	process_list_bad_version.clf	Matrix	The compCLFversion = "three"
0260	process_list_higher_version.clf	Matrix	The compCLFversion = "3.2"
0270	process_list_missing.clf	Matrix	The ProcessList element is missing
0280	range_bad_noclamp.clf	Range	The noClamp style must have both min and max values
0290	range_bad_values.clf	Range	The minInValue must be less than the maxInValue
0300	range_empty.clf	Range	The Range element must have at least min or max values
0310	range_nonmatching_clamp.clf	Range	A one-sided Range must use the same normalized value for in and out	Because the bit-depths differ, the values are not actually the same
0320	transform_bad_outdepth.clf	Matrix	The outBitDepth is "16d"
0330	transform_bitdepth_mismatch.clf	Matrix, Lut1D	The inBitDepth does not match the previous outBitDepth	Also missing the XML header (though this is legal)
0340	transform_corrupted_tag.clf	Matrix	The closing ProcessList element is incorrect
0350	transform_element_end_missing.clf	Matrix	The closing ProcessList element is missing
0360	transform_empty.clf	None	The ProcessList must have at least one ProcessNode operator
0370	transform_id_empty.clf	Log	The ProcessList id attribute must not be empty
0380	transform_missing_id.clf	Log	The ProcessList id attribute must be present
0390	transform_missing_inbitdepth.clf	Lut1D	The inBitDepth attribute is missing
0400	transform_missing_outbitdepth.clf	Lu1D	The outBitDepth attribute is missing
0410	transform_missing.clf	None	There is nothing except the XML header
0420	unknown_elements.clf	Matrix, Lut1D, Lut3D	The ProcessList contains unknown elements outside the Info element

Annex C: Finishing Tier Apply Test CLF List

The list of CLF files for the Finishing Tier apply test is the complete list of legal files in Annex B.

Processed reference images may be downloaded from here: CLF Apply Test Images

Annex D: Preview Tier Apply Test CLF List

The CLF file for the Preview Tier apply test is simply: lut3d_preview_tier_test.clf

Processed reference images may be downloaded from here: CLF Apply Test Images

Annex E: Baking a CLF for Preview Tier Implementation

Because CLF allows a fairly powerful set of processing operators that may be assembled into pipelines of any ordering and any length, it will not be possible to exactly evaluate all CLFs on hardware or software that has a fixed processing pipeline. (In other words, the implementation must allow the CLF file itself to specify the pipeline of operators for a given color transform.)

Converting color transforms into a simpler structure to make them simpler to evaluate is known as baking. This is often done to meet the needs of a particular hardware implementation.

There are a number of factors that make the process of accurately baking color transforms a difficult and complicated subject:

• CLF is intended to support the needs of floating-point scene-linear color spaces and therefore the range of possible input and output values extends from very small to very large numbers (both positive and negative).
• A given CLF may expect virtually any color space (scene-linear, camera log, video, etc.) on input and another completely different space on output.
• The flexible nature of CLF and the way a chain of operators is built up makes it fairly easy for the function to have abrupt changes in slope. For example, at the edge of a gamut boundary, or due to a conversion into an internal working space for a look transform. These slope changes are usually not captured accurately when the transform is baked.
• The human visual system is often able to detect fairly small errors in color reproduction, particularly in dark colors.

All of that said, there are many successful products that have used a baking process. For example, this technique is often used in products designed for on-set production monitoring involving look transforms. So it is highly likely that baking of CLFs could be a successful strategy for Preview Tier products. The key will be to clearly document the types of color transforms that may be successfully baked and those that the user should avoid.

Integer-based implementations in the Preview Tier will typically be processing video or logarithmic color space encodings. So for example, if the documentation suggests avoiding use of CLFs expecting scene-linear color spaces on input, that is probably fine since (hopefully!) no one will be trying to send raw scene-linear values through an integer connection such as SDI video.

The accuracy of the baking process may be judged by sending images through both the original CLF and the baked CLF and comparing them. OpenColorIO or any product that passes the Finishing Tier tests could be used for this type of comparison. But keep in mind that the result will depend on many factors, including the input and output color spaces and the internal structure of the original CLF. So even though one CLF may bake accurately through a given baking process, it certainly does not mean that all of them will. Testing with a range of user transforms is essential.

OpenColorIO may be used to experiment with baking CLFs using the command-line tool ociobakelut. For example, here is a command that takes an original CLF named complicated.clf and bakes it into a single LUT3D with a cube dimension of 33x33x33 called simple.clf:

$ ociobakelut --lut complicated.clf --cubesize 33 --format "Academy/ASC Common LUT Format" --v simple.clf

You may edit the resulting CLF XML file in a text editor to add the interpolation="tetrahedral" attribute to the LUT3D and any desired metadata.

For CLFs that convert from one perceptually uniform color space to another (i.e., between most logarithmic and video color spaces), this will often be reasonably accurate for Preview Tier devices. Increasing the cube size will improve accuracy (the default cubesize is 64x64x64).

However, this would not work well for baking a CLF that expects a scene-linear color space on input. In those situations, the usual technique is to add some kind of a "shaper" LUT1D or other non-linear transform in front of the LUT3D that will convert the linear values into something more perceptually uniform. A more modern and compact technique that takes advantage of the CLF capabilities would be to insert a Log ProcessNode rather than a LUT1D, but the most appropriate technique would be based on the needs of the given implementation.

The ociobakelut tool is able to bake with shaper LUTs, but it requires an OCIO config file to define the input, output, and shaper spaces. But for the use-case here, the input is just a single CLF file, so there is no OCIO config file to use. OpenColorIO could still be used to do these more advanced types of baking, but it would require some scripting. One approach would be to create a config file that references the original CLF as a file transform and includes an appropriate shaper space. Another approach would be to just use the OCIO API directly to write your own baking tool, using the ociobakelut code for inspiration. (And if so, we encourage you to contribute it back to the OCIO project!)

The ociobakelut command supports many arguments; use the -h argument for a summary. For example, note that you may supply many --lut arguments on the command line and they will all be baked together into the result. You may also consult the Baking LUT’s section of the OCIO documentation for a tutorial on using ociobakelut.

Annex F: Using CLF to represent ACES Look Transforms

Historically, look workflows have been based on applying a look in some kind of logarithmic color space, for example, a camera log space. This is partly because the existing infrastructure was built for integer pixel formats and did not support floating-point pixel formats. (The Preview Tier described above is an attempt to define requirements for these integer-based devices.) And until CLF, previous LUT formats did not support scene-linear color spaces well.

However, the input values and output values of ACES Look Transforms (also known as "LMTs") must be ACES2065-1. This is to maintain universality of Look Transforms and not link them to project-specific working spaces. Look Transforms may then convert ACES2065-1 to some other working space internally (e.g., a camera log space) for look application. This is the vision for the future and the ACES Metadata File (AMF) format expects implementations to work this way.

As an aside, it is recommended that the InputDescriptor and OutputDescriptor be set to ACES2065-1 when authoring Look Transforms as CLFs so it is always clear what the expected input and output color spaces are. The Description tag and other metadata may also be used to provide a more complete description of the look.

When look operations are to be performed in a working space other than ACES2065-1, then appropriate conversions to and from the required working space can be prepended and appended within a CLF to communicate the transform. For accuracy, whenever possible, these conversions should be implemented using discrete operations such as Log and Matrix ProcessNodes rather than LUT1D or LUT3D.

By using ProcessNodes such as Log and Matrix, a CLF author makes it easier for an implementation to detect and remove any unnecessary conversions when applying the CLF. For example, OpenColorIO will do this when optimizing transform chains.

The OCIO tool ociomakeclf can create an ACES Look Transform by prepending and appending the appropriate color space conversions to an existing look LUT file. For example, if an existing look LUT expects ACEScct input and outputs ACEScct, the --csc ACEScct option will add appropriate conversions from ACES2065-1 to ACEScct at the beginning and from ACEScct back to ACES2065-1 at the end.

Example:

Convert the look CDL cdl_test2.cc that expects and produces ACEScct values to an ACES Look Transform in CLF format that expects and produces ACES2065-1 values:

$ ociomakeclf OpenColorIO/tests/data/files/cdl_test2.cc LMT.clf --csc ACEScct

This generates the following CLF:

<?xml version="1.0" encoding="UTF-8"?>
<ProcessList compCLFversion="3" id="669980ac1ecd97ab18c1707250a13d20">

<!-- Header metadata -->
    <Description>ACES LMT transform built from a look LUT expecting color space: ACEScct</Description>
    <Description>Original LUT name: OpenColorIO/tests/data/files/cdl_test2.cc</Description>
    <InputDescriptor>ACES2065-1</InputDescriptor>
    <OutputDescriptor>ACES2065-1</OutputDescriptor>

<!-- Convert from ACES2065-1 to ACEScct -->
    <Matrix inBitDepth="32f" outBitDepth="32f">
            <Array dim="3 3">
 1.45143931614567    -0.23651074689374   -0.214928569251925
-0.0765537733960206 1.17622969983357   -0.0996759264375522
 0.00831614842569772 -0.00603244979102103 0.997716301365323
            </Array>
    </Matrix>
    <Log inBitDepth="32f" outBitDepth="32f" style="cameraLinToLog">
            <LogParams base="2" linSideSlope="1" linSideOffset="0" logSideSlope="0.0570776255707763" logSideOffset="0.554794520547945" linSideBreak="0.0078125" />
    </Log>

<!-- Apply the user's CDL look in the ACEScct working space -->
    <ASC_CDL id="cc0001" inBitDepth="32f" outBitDepth="32f" style="FwdNoClamp">
        <SOPNode>
            <Slope>1.0 1.0 0.9</Slope>
            <Offset>-0.03 -0.02 0.0</Offset>
            <Power>1.25 1.0 1.0</Power>
        </SOPNode>
        <SatNode>
            <Saturation>1.7</Saturation>
        </SatNode>
    </ASC_CDL>

<!-- Convert from ACEScct back to ACES2065-1 -->
    <Log inBitDepth="32f" outBitDepth="32f" style="cameraLogToLin">
            <LogParams base="2" linSideSlope="1" linSideOffset="0" logSideSlope="0.0570776255707763" logSideOffset="0.554794520547945" linSideBreak="0.0078125" />
    </Log>
    <Matrix inBitDepth="32f" outBitDepth="32f">
            <Array dim="3 3">
  0.695452241357452    0.140678696470294    0.163869062172254
  0.0447945633720377   0.859671118456422    0.0955343181715404
 -0.00552588255811354  0.00402521030597866  1.00150067225213
            </Array>
    </Matrix>
</ProcessList>

Note that an ACES Look Transform is usually just one component in a larger pipeline of transforms. For example, Preview Tier implementations involving on-set LUT boxes will typically incorporate the Look Transform into a chain of transforms that expect a camera log color space on input and produce a video color space on output. As noted above, the use of explicit Log and Matrix ProcessNodes in a CLF transform allows an implementation to detect unnecessary operations. For example, if an ACES Input Transform were added in front of an ACES Look Transform that begins with the inverse of that Input Transform, the redundant operations could be optimized out for efficiency. Though in some implementations, this will all be baked into a single LUT3D, making such optimizations less necessary.

Annex G: Using CLF with AMF

The ACES Metadata File (AMF) is a "sidecar" XML file designed to encapsulate the metadata required to recreate ACES viewing pipelines. An AMF can carry references to one or more CLF files as external ACES Look Transform files.

When using a CLF file for ACES applications and especially when in conjunction with AMF, it is recommended that the CLF id attribute of the ProcessList be populated with a uuid.

Multiple CLFs can be included by using multiple lookTransform elements in the AMF file. The CLFs are applied in the order in which they appear in the AMF.

See the AMF Handbook for more details.

Annex H: Identity (no-op) CLF example

To avoid doubt in cases where CLF files are exchanged as “sidecar” files to batches of media, it may be desirable to use a standard CLF form even when no transform or color modification has been assigned to certain media clips / files. In these cases it may be useful that a “No-Op” CLF file be included as the associated sidecar file to communicate to downstream users that no transform is assigned. This may be preferred to not providing a sidecar CLF file, as the absence of CLF files for a subset of a larger media batch often raises questions in certain workflows about whether an expected file is missing.

For this situation, implementers may generate a minimal CLF file like that shown below, where the ProcessList has a single ProcessNode of the Matrix type with a 3x3 identity matrix. (Implementers do not need to copy this exactly, for example there are other operators that also give an identity and details like the id string will differ.)

<?xml version="1.0" encoding="UTF-8"?>
<ProcessList id="37efa85b-5bc8-40dc-8ffe-b488a3c013ea" name="No-Op" compCLFversion="3.0">
    <Description>No-Op CLF</Description>
    <Matrix name="identity matrix" inBitDepth="32f" outBitDepth="32f">
        <Array dim="3 3">
          1.0 0.0 0.0
          0.0 1.0 0.0
          0.0 0.0 1.0
        </Array>
    </Matrix>
</ProcessList>

Annex I: Infinity and NaN handling

The CLFs used for the apply tests were specially chosen to avoid floating-point overflows that could turn pixels in the test target image into infinity or NaN. However, with other CLFs, the comparison script described in the other sections may fail if the resulting images have infinity or NaN pixels.

The handling of infinity and NaN is challenging in a number of regards. For example:

• There is not always consensus on what the ideal behavior is. For example, should overflows be clamped to a large finite value or allowed to produce an infinity.
• There are sometimes performance penalties to be extra rigorous about the handling which are not always warranted.
• The handling on GPUs tends to vary a lot and often does not match the CPU (where there are clearer specs for what is supposed to happen).
• Once these values get into a chain of color processing, there can be somewhat unexpected results. For example, (Inf – Inf) is NaN, likewise, (0 x Inf) is NaN, so quite often an infinity going into a matrix or other operator that mixes the channels results in NaNs coming out.

Due to issues such as these, neither the Academy reference CTL for ACES transforms nor OpenColorIO have ideal behavior with respect to the handling of floating-point infinity and NaN. We expect this is true of most other practical implementations and so this initial version of the Implementation Guide does not attempt to validate handling of these values.

Annex J: Python code for creating the Preview Tier test LUT

Here is some Python code that uses OCIO to create the test LUT for the Preview Tier.

# This script builds the file for the Preview Tier test from the CLF test suite.

import PyOpenColorIO as ocio
import numpy as np

v = np.linspace(0,1,33)
# v =
# array([ 0.    ,  0.03125,  0.0625 ,  0.09375,  0.125  ,  0.15625,
#       0.1875 ,  0.21875,  0.25   ,  0.28125,  0.3125 ,  0.34375,
#       0.375  ,  0.40625,  0.4375 ,  0.46875,  0.5 ,  0.53125,
#       0.5625 ,  0.59375,  0.625  ,  0.65625,  0.6875 ,  0.71875,
#       0.75   ,  0.78125,  0.8125 ,  0.84375,  0.875  ,  0.90625,
#       0.9375 ,  0.96875,  1.  ])

# Convert the vector into the values for a Lut3D.  Uses blue-fastest order.
a1, a2, a3 = np.meshgrid(v,v,v)
gr = np.column_stack((a2.ravel(), a1.ravel(), a3.ravel()))

# At this point, gr is a 35937 x 3 array with min=0 and max=1.

# Build transforms to convert from ACEScct to Rec.709 using an ACES Output Transform.
bt1 = ocio.BuiltinTransform(style='ACEScct_to_ACES2065-1')
bt2 = ocio.BuiltinTransform(style='ACES-OUTPUT - ACES2065-1_to_CIE-XYZ-D65 - SDR-VIDEO_1.0')
bt3 = ocio.BuiltinTransform(style='DISPLAY - CIE-XYZ-D65_to_REC.1886-REC.709')
dvt = ocio.GroupTransform( [bt1, bt2, bt3] )

# Set up an OCIO Processor and process the values.
config = ocio.Config.CreateRaw()
proc = config.getProcessor(dvt)
cpu = proc.getDefaultCPUProcessor()
tmp = gr.astype(np.float32)
cpu.applyRGB(tmp)   # replaces tmp with output

# For this example, the goal was to quantize to 10-bits and clamp to [4,1019]
# since hardware involving SDI video may not be able to process these values.
vals = np.round(tmp * 1023)
# vals[0:10,:] =
# array([[   0.,   0.,    0.],
#        [   0.,   0.,    0.],
#        [   0.,   0.,    0.],
#        [   0.,   0.,    0.],
#        [   0.,   0.,   35.],
#        [   0.,   0.,   52.],
#        [   0.,   0.,   68.],
#        [   0.,   0.,   88.],
#        [   0.,   0.,  114.],
#        [   0.,   0.,  148.]], dtype=float32)
vals2 = vals.clip(4,1019)

# Now renormalize to [0,1], vectorize, and set the data into a Lut3D.
vals2 = vals2 / 1023.
lut = ocio.Lut3DTransform()
lut.setData(vals2.ravel())

# Set some LUT attributes.
lut.setFileOutputBitDepth(ocio.BIT_DEPTH_UINT10)
lut.setInterpolation(ocio.INTERP_TETRAHEDRAL)
fmd = lut.getFormatMetadata()
fmd.addChildElement('Description','This LUT is an ACEScct to Rec.709 Output Transform, clamped to [4,1019]')
# print(lut)
# <Lut3DTransform direction=forward, fileoutdepth=10ui, interpolation=tetrahedral,
#  gridSize=33, minrgb=[0.00391007 0.00391007 0.00391007], maxrgb=[0.99609 0.99609
#  0.99609]>

# Add the LUT to a GroupTransform, set the metadata and write.
grp = ocio.GroupTransform()
grp.appendTransform(lut)
fmdg = grp.getFormatMetadata()
fmdg.setID('00001')
fmdg.setName('Preview-tier Lut3D test')
fmdg.addChildElement('Description','Test LUT for Preview-tier CLF validation test suite')
fmdg.addChildElement('InputDescriptor','ACEScct')
fmdg.addChildElement('OutputDescriptor','Rec.1886 / Rec.709 video')
# print(grp)
# <GroupTransform direction=forward, transforms=
#       <Lut3DTransform direction=forward, fileoutdepth=10ui, interpolation=tetrahedral,
#       gridSize=33, minrgb=[0.00391007 0.00391007 0.00391007],
#       maxrgb=[0.99609 0.99609 0.99609]>>

grp.write(formatName='Academy/ASC Common LUT Format', config=config, fileName='/tmp/lut3d_preview_tier_test.clf')

Annex K: Generation of the reference images

The processed reference images may be downloaded from the URL provided in Annex C and D above. This section documents how those images were generated.

Finishing Tier Reference Images

Since OpenColorIO is an actively maintained open source implementation of CLF, it has been used to generate the processed reference images. There is a Python script in the OCIO repository that may be run to generate these images. The script is run as follows (these steps assume a Linux or Mac platform but could also be done on Windows):

1. Install OpenImageIO
2. Install OpenColorIO from source, following the instructions in the OCIO documentation available from opencolorio.org. Given that OIIO was installed in step 1, this should build the ocioconvert command-line tool, which is needed by the Python script.
3. In a shell, cd to the directory where OpenColorIO was installed and then cd into the sub-directory share/clf. This directory contains the Python script as well as a copy of the source target image described in Annex A.
4. In the shell, type:

   $ python process_clf_test_frames.py <OUTPUT-DIR>


   replacing <OUTPUT-DIR> with a directory that you want to write the images to.

(There are also some other optional arguments that are described if you run the script with just a "-h" option, but these are not necessary to generate the reference image set.)

Preview Tier Source Image

The Preview Tier test uses an integer source image in DPX format. That image was generated from the main Finishing Tier floating-point source image by applying a conversion from ACES2065-1 to ACEScct. It may be generated using the command-line tool oiiotool that is included with OpenImageIO using the following steps (these steps assume a Linux or Mac platform but could also be done on Windows):

1. Install a recent version of OpenImageIO and oiiotool, compiled with OpenColorIO support.
2. Download the OpenColorIO source code, which contains an OCIO config file to use with oiiotool.
3. In a shell, cd to the directory where OpenColorIO was installed and then cd into the sub-directory share/clf. This directory contains a copy of the source target image described in Annex A.
4. Set the OCIO environment variable to point to the following config file in the OCIO repository: docs/configurations/ocio-v2_demo.ocio
5. Run the command:

   $ oiiotool CLF_Finishing_SourceImage_v008.exr --colorconvert ACES2065-1 ACEScct -d uint10 -o CLF_Preview_SourceImage_v008.dpx


Preview Tier Reference Image

The Preview Tier reference image may then be generated as follows:

1. Follow steps 1-5 in the previous section. At this point the current directory will be the share/clf sub-directory of the OpenColorIO source code.
2. Run the command:

   $ oiiotool CLF_Preview_SourceImage_v008.dpx --ociofiletransform ../../tests/data/files/clf/lut3d_preview_tier_test.clf -d uint10 -o lut3d_preview_tier_test.dpx
